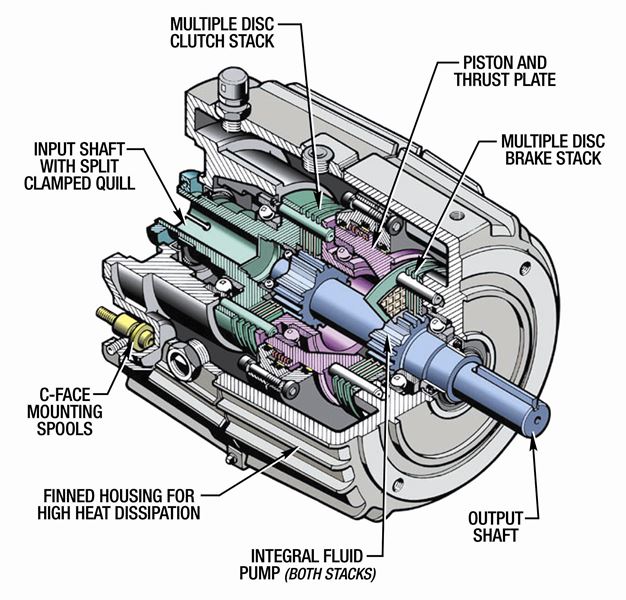

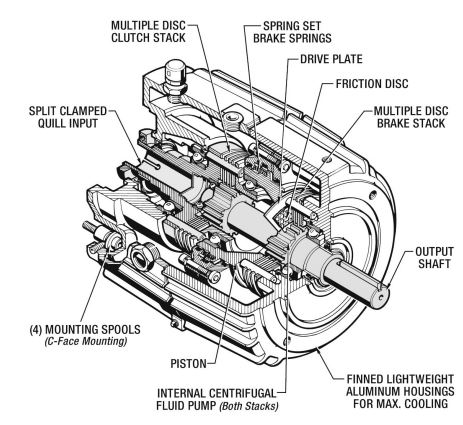

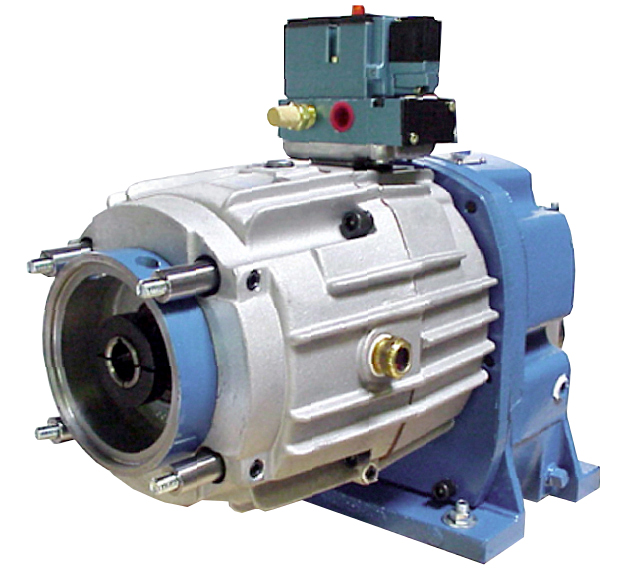

Today's Posidyne® is a modern motion control device capable of rapid and precise stopping, starting, reversing, speed changing and positioning. The Posidyne® Clutch/Brake being designed to handle the energy of rapid acceleration and deceleration has a field proven history under normal use demonstrating its ability to reduce maintenance normally associated with cycling applications. Use of a Posidyne® also reduces stress on motors and other components in the machine.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Static Maximum Clutch Torque

Dynamic Maximum Clutch Torque

Maximum Air Pressure Clutch Torque

Dynamic Maximum Brake Torque Springs Only

Quantity
N/A 1.5-S Posidyne® Clutch/Brake N/A 427 lb·in N/A 367 lb·in N/A 60 psi N/A 27 lb·in
N/A 1.5-SA Posidyne® Clutch/Brake N/A 387 lb·in N/A 333 lb·in N/A 70 psi N/A 95 lb·in
N/A 1.5-A Posidyne® Clutch/Brake N/A 387 lb·in N/A 333 lb·in N/A 70 psi N/A 95 lb·in
N/A 1.5-B Posidyne® Clutch/Brake N/A 240 lb·in N/A 206 lb·in N/A 70 psi N/A 189 lb·in
N/A 1.5-C Posidyne® Clutch/Brake N/A 427 lb·in N/A 367 lb·in N/A 60 psi N/A
N/A 1.5-P Posidyne® Clutch/Brake N/A 464 lb·in N/A 399 lb·in N/A 70 psi N/A
