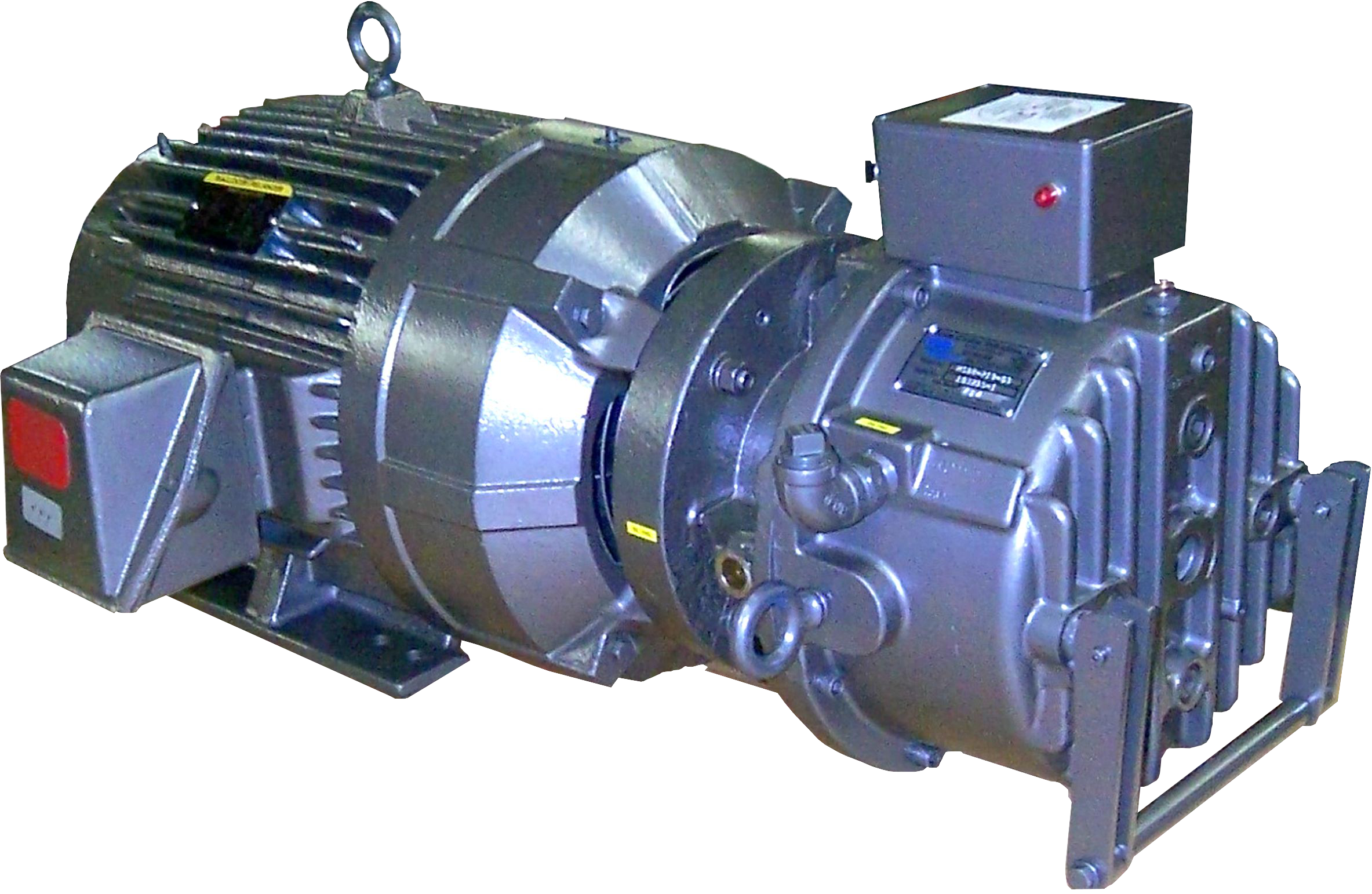

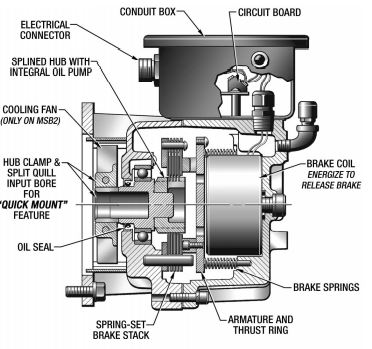

MagnaShear® Motor Brakes combine oil shear durability with electric actuation, simple control logic and spring-set load holding. Easy to install, economical to operate, MagnaShear® motor brakes run on 115 VAC, 50 or 60 Hz.. An optional Step Down Transformer is available for other voltages. They fit a wide range of motors, including NEMA U-frame, and T-frame motors.

MagnaShear® Oil Shear Brakes are designed to dissipate the heat buildup that destroy conventional braking devices.

1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Inrush Current

Inrush Time

Holding Current

Dimensions A

Quantity
N/A MSB2 MagnaShear® Motor Brake N/A 2.5 A N/A 0.4 s N/A 0.8 A N/A 9.07 in
N/A MSB4 MagnaShear® Motor Brake N/A 5.5 A N/A 0.4 s N/A 1.7 A N/A 10.25 in
N/A MSB6 MagnaShear® Motor Brake N/A 6 A N/A 0.4 s N/A 1.8 A N/A 12.58 in
N/A MSB7 MagnaShear® Motor Brake N/A 6 A N/A 0.4 s N/A 1.8 A N/A
N/A MSB8 MagnaShear® Motor Brake N/A 6 A N/A 0.4 s N/A 1.8 A N/A
N/A MSB9 MagnaShear® Motor Brake N/A 6 A N/A 1.4 s N/A 1.8 A N/A
N/A MSB10 MagnaShear® Motor Brake N/A 6 A N/A 1.4 s N/A 1.8 A N/A
N/A MSB12 MagnaShear® Motor Brake N/A 8 A N/A 1.4 s N/A 2.5 A N/A
