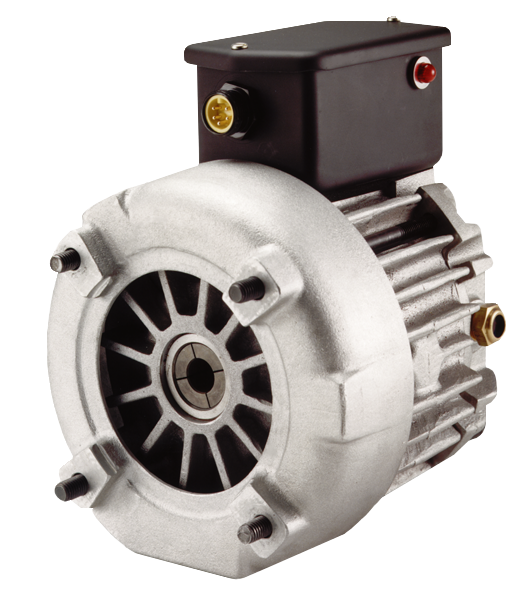

Bolt Circle FAK |
N/A 5.875 in |
Hub Bore FU |
N/A 0.625 in0.875 in |
Minimum Hub Depth FAH |
N/A 1.00 in |
Maximum Hub Depth FAH |
N/A 2.19 in |
Static Brake Torque |
N/A 6 lb·ft8 lb·ft12 lb·ft |
Dynamic Torque |
N/A 5 lb·ft7 lb·ft10 lb·ft |
Maximum Kinatic Energy (KE) per Engagement |
N/A 7,975 ft·lb |
Cyclic Inertia |
N/A 0.011 lb·ft² |
Oil Capacity |
N/A 28 fl oz |
Input Voltage |
N/A 115 VAC |
Inrush Current |
N/A 2.5 A |
Inrush Time |
N/A 0.4 s |
Holding Current |
N/A 0.8 A |
Mounting Position |
N/A D - Brake Down H - Horizontal U - Brake Up |
Manual Release |
N/A S - Standard, None |
Dimensions A |
N/A 9.07 in |
Dimensions B |
N/A 5.63 in |
Dimensions C |
N/A 8.84 in |
Dimensions D |
N/A 3.97 in |
Dimensions E |
N/A 0.50 in |
Dimensions L |
N/A 7.96 in |
Dimensions U |
N/A 0.875 in |
Dimensions FU |
N/A 7/8 in |
Dimensions AK |
N/A 4.500 in |
Dimensions FAK |
N/A 4.50 in |
Dimensions AG |
N/A 7.00 in |
Dimensions AA |
N/A 3.44 in |
Dimensions AB |
N/A 4.04 in |
Dimensions F |
N/A 3.44 in |
Dimensions G |
N/A 6.78 in |
Typical Applications |
N/A Chemical Dip Tanks Cranes and Hoists |
Features |
N/A 115, 208, 230, 380, 460, 575 VAC electric actuating system. Brake release by energizing the coil. Excellent service and engineering support. Fail-Safe Internal surge protection Modular design/assembly for ease of servicing and maintenance. Oil Shear multiple-disc spring set braking. Proven long-life friction material for repeatable positioning. Pulse Width Modulation (PWM) Control of the brake coil to minimize heat build-up. Seal integrity for harsh and washdown environments. Smooth “cushioned” stops for reduced shock to the drive system. Spring-set Torque ratings from 6 to 1250 Ft.Lbs. Superior heat dissipation. The (3) smaller sizes uses a split-quill and hub clamp for quick & easy mounting to the motor face. The (4) larger sizes have a Quick mount Bore & key shaft connection to the motor and standard mounting to NEMA motor frames or low inertia IEC frames. |
