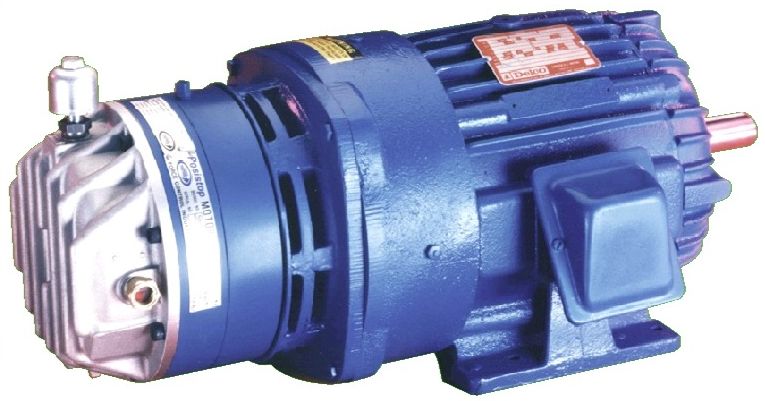

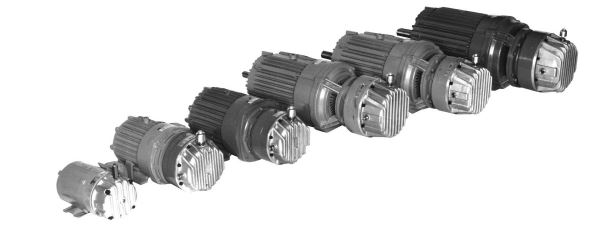

The ABM consists of a motor with a Posistop® Motor Brake assembled and ready to use. The ABM is available in many sizes, types and torque ranges up to 2030 Lb.Ft. By specifying the Posistop® ABM, complete motor and brake assembly, installation time is reduced to simply mounting the motor and connecting the air supply.
1 - 25 of 58 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items

Item #

Item Name

Static Brake Torque

Dynamic Torque

Maximum Kinetic Energy (KE) per Engagement with Full Stack

Piston Volume

Quantity
N/A 56-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 56Z-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 182U-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 184U-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 182U-180 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 184U-180 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 213U-210 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 215U-210 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 254U-210L Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 256U-210L Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 254U-250 Posistop® Assembled Brake Motor N/A 75 lb·in150 lb·in225 lb·in300 lb·in N/A 65 lb·ft130 lb·ft194 lb·ft259 lb·ft N/A 18,500 ft·lb N/A 5 in³
N/A 256U-250 Posistop® Assembled Brake Motor N/A 75 lb·in150 lb·in225 lb·in300 lb·in N/A 65 lb·ft130 lb·ft194 lb·ft259 lb·ft N/A 18,500 ft·lb N/A 5 in³
N/A 284U-280 Posistop® Assembled Brake Motor N/A 75 lb·in150 lb·in225 lb·in300 lb·in N/A 65 lb·ft130 lb·ft194 lb·ft259 lb·ft N/A 18,500 ft·lb N/A 5 in³
N/A 286U-280 Posistop® Assembled Brake Motor N/A 75 lb·in150 lb·in225 lb·in300 lb·in N/A 65 lb·ft130 lb·ft194 lb·ft259 lb·ft N/A 18,500 ft·lb N/A 5 in³
N/A 324U-320 Posistop® Assembled Brake Motor N/A 120 lb·in150 lb·in200 lb·in300 lb·in450 lb·in N/A 104 lb·ft130 lb·ft173 lb·ft259 lb·ft388 lb·ft N/A 18,500 ft·lb N/A 6 in³
N/A 326U-320 Posistop® Assembled Brake Motor N/A 120 lb·in150 lb·in200 lb·in300 lb·in450 lb·in N/A 104 lb·ft130 lb·ft173 lb·ft259 lb·ft388 lb·ft N/A 18,500 ft·lb N/A 6 in³
N/A 364U-320 Posistop® Assembled Brake Motor N/A 120 lb·in150 lb·in200 lb·in300 lb·in450 lb·in N/A 104 lb·ft130 lb·ft173 lb·ft259 lb·ft388 lb·ft N/A 18,500 ft·lb N/A 6 in³
N/A 365U-320 Posistop® Assembled Brake Motor N/A 120 lb·in150 lb·in200 lb·in300 lb·in450 lb·in N/A 104 lb·ft130 lb·ft173 lb·ft259 lb·ft388 lb·ft N/A 18,500 ft·lb N/A 6 in³
N/A 143T-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 145T-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 143T-180 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 145T-180 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 182T-056 Posistop® Assembled Brake Motor N/A 6 lb·in9 lb·in12 lb·in18 lb·in N/A 5.2 lb·ft7.8 lb·ft10.4 lb·ft15.6 lb·ft N/A 4650 ft·lb N/A 0.5 in³
N/A 182T-180 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
N/A 182T-210 Posistop® Assembled Brake Motor N/A 20 lb·in30 lb·in45 lb·in60 lb·in90 lb·in N/A 17 lb·ft26 lb·ft39 lb·ft52 lb·ft78 lb·ft N/A 6425 ft·lb N/A 3 in³
