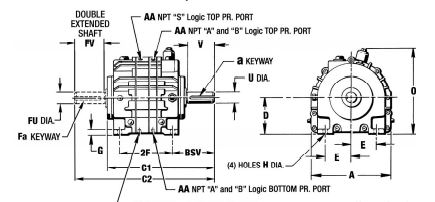

Foot Mounted Posistop Brakes On Force Control Industries, Inc.

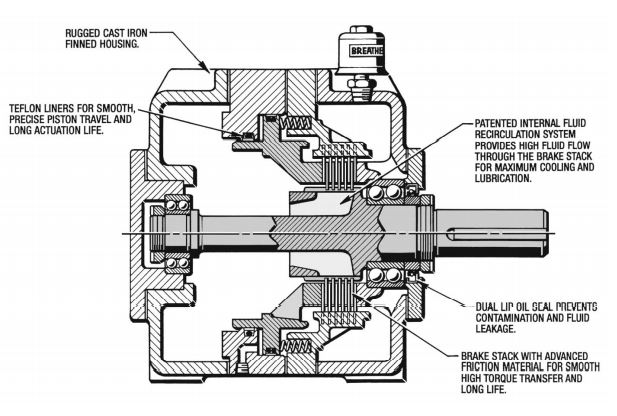

The Foot Mounted Posistop Brake is similar in design to the Posidyne Clutch/Brake incorporating many of the same features including multiple friction surfaces, lubrication and cooling by recirculating fluid. Six sizes are available with torque ratings up to 1800 Lb.Ft. There are three control logics to select from:
S = Air Set Brake / Spring Release
A = Medium Spring Set Brake / Air Release
B = Heavy Spring Set Brake / Air Release

The spring set units are preset at the factory and are not adjustable. The air set units are adjustable over the full range.

Item #	Item Name	Static Brake Torque Spring Set	Dynamic Brake Torque Spring Set	Dynamic Brake Torque with Air Assist	Maximum Air Pressure Brake Torque
PS 03-S	N/A PS 03-S Foot Mounted Posistop Brake	N/A	N/A	N/A 108 lb·ft	N/A 60 psi
PS 03-A	N/A PS 03-A Foot Mounted Posistop Brake	N/A 50 lb·ft	N/A 42 lb·ft	N/A	N/A
PS 03-B	N/A PS 03-B Foot Mounted Posistop Brake	N/A 100 lb·ft	N/A 85 lb·ft	N/A	N/A
PS 05-S	N/A PS 05-S Foot Mounted Posistop Brake	N/A	N/A	N/A 245 lb·ft	N/A 60 psi
PS 05-A	N/A PS 05-A Foot Mounted Posistop Brake	N/A 95 lb·ft	N/A 80 lb·ft	N/A	N/A
PS 05-B	N/A PS 05-B Foot Mounted Posistop Brake	N/A 189 lb·ft	N/A 160 lb·ft	N/A	N/A
PS 10-S	N/A PS 10-S Foot Mounted Posistop Brake	N/A	N/A	N/A 592 lb·ft	N/A 60 psi
PS 10-A	N/A PS 10-A Foot Mounted Posistop Brake	N/A 233 lb·ft	N/A 197 lb·ft	N/A	N/A
PS 10-B	N/A PS 10-B Foot Mounted Posistop Brake	N/A 466 lb·ft	N/A 394 lb·ft	N/A	N/A
PS 11-S	N/A PS 11-S Foot Mounted Posistop Brake	N/A	N/A	N/A 927 lb·ft	N/A 80 psi
PS 11-A	N/A PS 11-A Foot Mounted Posistop Brake	N/A 222 lb·ft	N/A 188 lb·ft	N/A	N/A
PS 11-B	N/A PS 11-B Foot Mounted Posistop Brake	N/A 444 lb·ft	N/A 375 lb·ft	N/A	N/A
PS 14-S	N/A PS 14-S Foot Mounted Posistop Brake	N/A	N/A	N/A 1458 lb·ft	N/A 80 psi
PS 14-A	N/A PS 14-A Foot Mounted Posistop Brake	N/A 387 lb·ft	N/A 327 lb·ft	N/A	N/A
PS 14-B	N/A PS 14-B Foot Mounted Posistop Brake	N/A 696 lb·ft	N/A 589 lb·ft	N/A	N/A
PS 20-S	N/A PS 20-S Foot Mounted Posistop Brake	N/A	N/A	N/A 1245 lb·ft	N/A 80 psi
PS 20-A	N/A PS 20-A Foot Mounted Posistop Brake	N/A 397 lb·ft	N/A 336 lb·ft	N/A	N/A
PS 20-B	N/A PS 20-B Foot Mounted Posistop Brake	N/A 1338 lb·ft	N/A 1151 lb·ft	N/A	N/A

Quantity

PS 03-S

N/A PS 03-S Foot Mounted Posistop Brake

N/A

N/A 108 lb·ft

N/A 60 psi

PS 03-A

N/A PS 03-A Foot Mounted Posistop Brake

N/A 50 lb·ft

N/A 42 lb·ft

N/A

PS 03-B

N/A PS 03-B Foot Mounted Posistop Brake

N/A 100 lb·ft

N/A 85 lb·ft

N/A

PS 05-S

N/A PS 05-S Foot Mounted Posistop Brake

N/A

N/A 245 lb·ft

N/A 60 psi

PS 05-A

N/A PS 05-A Foot Mounted Posistop Brake

N/A 95 lb·ft

N/A 80 lb·ft

N/A

PS 05-B

N/A PS 05-B Foot Mounted Posistop Brake

N/A 189 lb·ft

N/A 160 lb·ft

N/A

PS 10-S

N/A PS 10-S Foot Mounted Posistop Brake

N/A

N/A 592 lb·ft

N/A 60 psi

PS 10-A

N/A PS 10-A Foot Mounted Posistop Brake

N/A 233 lb·ft

N/A 197 lb·ft

N/A

PS 10-B

N/A PS 10-B Foot Mounted Posistop Brake

N/A 466 lb·ft

N/A 394 lb·ft

N/A

PS 11-S

N/A PS 11-S Foot Mounted Posistop Brake

N/A

N/A 927 lb·ft

N/A 80 psi

PS 11-A

N/A PS 11-A Foot Mounted Posistop Brake

N/A 222 lb·ft

N/A 188 lb·ft

N/A

PS 11-B

N/A PS 11-B Foot Mounted Posistop Brake

N/A 444 lb·ft

N/A 375 lb·ft

N/A

PS 14-S

N/A PS 14-S Foot Mounted Posistop Brake

N/A

N/A 1458 lb·ft

N/A 80 psi

PS 14-A

N/A PS 14-A Foot Mounted Posistop Brake

N/A 387 lb·ft

N/A 327 lb·ft

N/A

PS 14-B

N/A PS 14-B Foot Mounted Posistop Brake

N/A 696 lb·ft

N/A 589 lb·ft

N/A

PS 20-S

N/A PS 20-S Foot Mounted Posistop Brake

N/A

N/A 1245 lb·ft

N/A 80 psi

PS 20-A

N/A PS 20-A Foot Mounted Posistop Brake

N/A 397 lb·ft

N/A 336 lb·ft

N/A

PS 20-B

N/A PS 20-B Foot Mounted Posistop Brake

N/A 1338 lb·ft

N/A 1151 lb·ft

N/A
