General Capabilities |
N/A Custom |
Product |

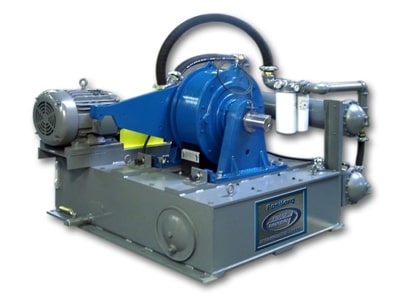

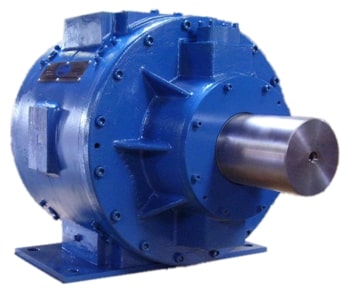

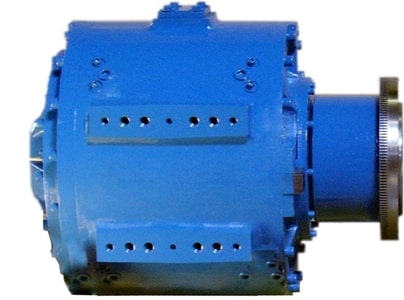

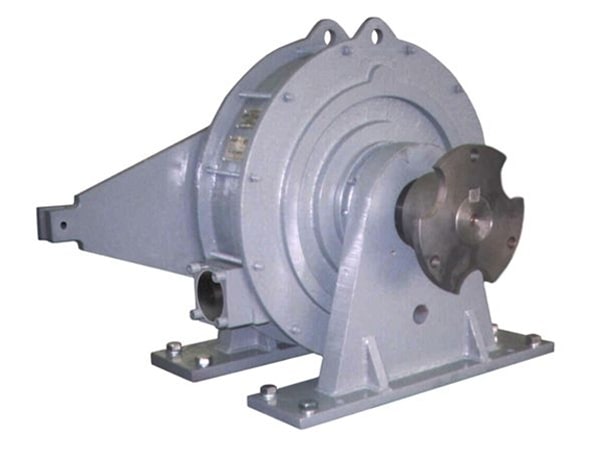

N/A Absorber Brakes |
Torque |
N/A Based on Customer Requirements Up to 300,000 lb/ft |
Horse Power (HP) Rating |
N/A Based on Customer Requirements |
Size |
N/A Based on Customer Requirements |
Discharge Position |
N/A Bottom Left Hand Side Right Hand Side |
Load Cell - Dynamometer Options Only |
N/A
Load Cell Load Cell with Digital Readout |
Servo Valve - Dynamometer Options Only |
N/A Servo Valve Servo Valve with Control, Manual Pot Adjustment Servo Valve with Control, PID Control |
Solenoid Valve - Dynamometer Options Only |
N/A 115 VAC with Regulator 24 VDC with Regulator |
Speed Pick-Up - Dynamometer Options Only |
N/A Magnet Pick-Up with Speed Readout Magnetic PickUp |
Shaft Options |
N/A Double External Shaft Single Shaft |
Mounting Type |
N/A Flange-Mounted Foot-Mounted Pillow-Block Mounted |
Mounting Position |
N/A Horizontal Vertical Shaft Down Vertical Shaft Up Wall on Left Viewing Shaft Wall on Right Viewing Shaft |
Cooling Options |

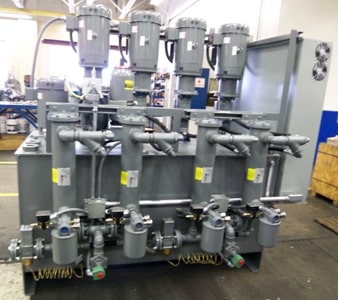

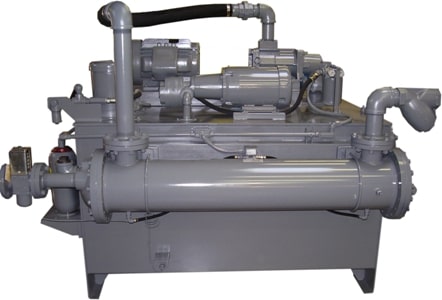

N/A Basic High Oil Level, Low Slip Speed, Slotted Plates Basic Radiant Fan Cooled (Mounted On Shaft) Fan Cooled Electric (High Oil Level) Forced Lube (Oil to Air) Forced Lube (Oil to Water) |
Common Applications |

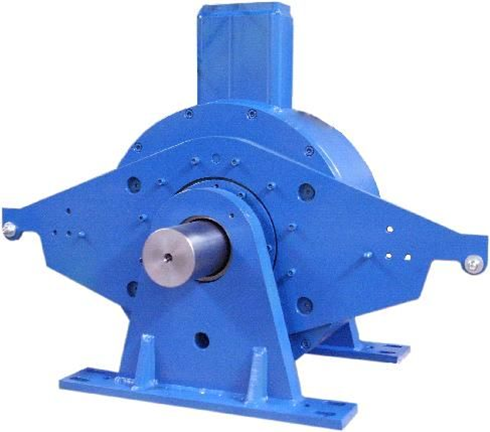

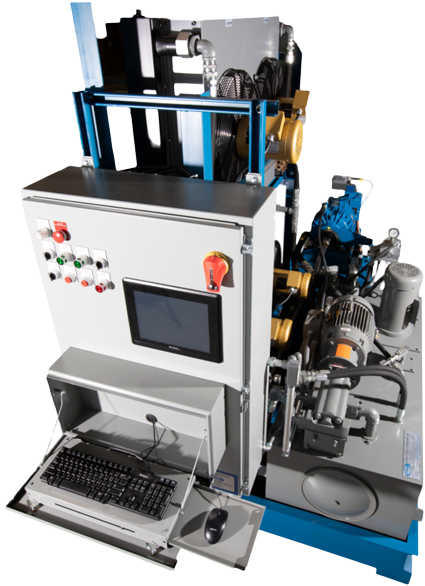

N/A Dynamometer Test Stand High Cycle-Low Speed-High Torque TB-20 Engine Starter Test Stand Transmission Test Stand |
Accessories |
N/A Accessories & Kits Also Available Load Cells PID Controls Servo Valves Solenoid Valves Speed Pick-Ups |
Lead Times |
N/A Emergency/Rush Services Available Quoted on a Job-by Job Basis |
Production Volume |
N/A Blanket Orders Low to High Volume |
Features |
N/A Air or Hydraulic Actuation Compact Size - Direct Axle Mount Continuous High Torque at Low Speed Dissipating up to 3000 HP Extremely Long Service Life High Static Torque High-Torque Low-Speed Near Zero Hysteresis No Chatter Down to 0 RPM Oil Shear Technology Proportional Linear Torque Control Quick Response Quiet - Less Than 20 dB Torque up to 300,000 Lb. Ft. Variety of Mounting Types |
Industry Focus |
N/A Agricultural Automotive Building & Construction Coating Fabrication Food Processing Light Manufacturing Lumber Machinery Marine Material Processing Mining Oil & Gas Packaging Paper & Pulp Power Generation Shipping Steel Mills |
Industry Standards |
N/A International Organization for Standardization ( ISO) |
