Universal Supply Input |
N/A 85-264 VAC Fused @ 4 amps Maximum: 100 watts Single Phase 47-63 Hz |
Interface |
N/A All Functions Adjustable through Display Panel Push Buttons. All Functions Adjustable with a Simple Menu through a Display Panel. |
Program Lockout |
N/A Via External Cold Contact |
Eleven Internally Tested Functions |
N/A Error Codes with Descriptions Displayed to Identify Faults |
Compact Design |
N/A Door Mount or Panel Mount |
Always Ready |
N/A No Calibration Required |
Stall Detection |
N/A Detects a Jam (No Rotation of the Encoder) Before Reaching the Desired Stop Position and Disengages the Clutch. |
Watch Dog Timer |
N/A Adjustable (100 milliseconds to 1 minute) Timer which will Disengage the Clutch if timed out before Reaching the Desired Stop Position. Used to Protect against Jams which may Stop or Slow down the Drive. Off, 100 ms to 1 min. in 16 Increments. |
Encoder Resolution Settings |
N/A X1, X2 and X4. |
Manual Adjustment |
N/A ± 1/4 of Maximum Count. Allows a Positive or Negative Adjustment from the Home Sensor Position. Used to Align the Machine Position with the Home Sensor. |
Emergency/Fault Stop |
N/A Abort Input allows the Control to React to an External Request to Stop the Index or Prevent any Further Indexes from Occurring. |
In Position Output |
N/A An Output to Indicate when the Drive has Reached Position. A Plus or Minus Count can be set as an Allowable in Position Window. |
Optional (MIP/PLS) |
N/A Multiple Indexing Parameter Groups - Capable of Storing Up to 16 Different Groups (Index Distances). Programmable Limit Switch - Capable of 4 Programmable Outputs based on Position. |
Typical Applications |
N/A Assembly Line Part Conveyor (CLPC-LC Control) Case Packer (CLPC-LC Control) Ferris Wheel Turn Over (CLPC-LC Control) Part Cut-Off - CLPC-LC (CTL) Cut-To-Length Control Press Feeder - CLPC-LC (FTL) Feed-To-Length Wire Feed Application (CLPC-LC Control) |
Encoder Input |
N/A 0-.3 VDC (Low), 2-12 VDC (High) Maximum: 7.2 kHz Six Signals: A, A’, B, B’, Z and Z’ |
Auxiliary Supply |
N/A 12 VDC, 1 amp, Current limited, Short circuit protected.Used for Encoder and Home Switch. |
Solid State Inputs |
N/A Three: 120 VAC and 24 VDC standard, Fused @ 1/16 amps, Start Cycle, Fault Reset and Abort Cycle. |
Program Interlock Input |
N/A External Cold Contact Switch Required. |
Solid State Outputs |
N/A Two: 115 VAC Standard (7 to 60 VDC Available), Fused @ 3 amps, N.O.- Fault and In Position. |
Clutch/Brake Output |
N/A One: 24 VDC, Maximum: 1 amp , Fused @ 3 amps. |
Displays |
N/A 16 Characters by 2 Lines, .22 Inch Character Height, Backlit |
LED Status Indicators |
N/A Five: Channel A, Channel B, Z Channel, Clutch On, Fault. |
Diagnostics |
N/A Eleven: Internally Tested Functions. Error Codes and Description Displayed to Identify Faults. |
Enclosure |
N/A Aluminum/Stainless, Black anodized, NEMA 1, IP20 Enclosure. NEMA 4, IP66 when Door Mounted with Gasket. |
Weight |
N/A 3.5 lb |

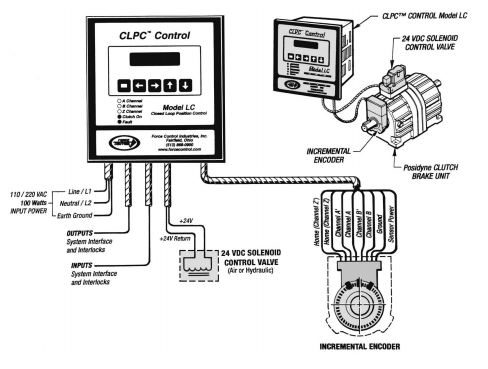

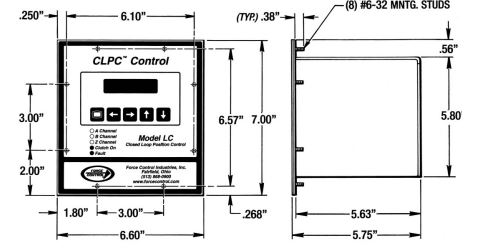

Dimensions |
N/A Face 6 in x 6 in x Deep 5-3/4 in |
Operating Temperature |
N/A 32 to 140 ºF0 to 60 ºC |
Storage Temperature |
N/A 0 to 186 ºF-18 to 85 ºC |
Ambient Humidity |
N/A Non-condensing Maximum 90 % |
Vibration |
N/A 2.5 g’s 30 to 200 Hz |
Index Count |
N/A Up to 65,535 Pulses. |
Encoder Input Control |
N/A x1, x2 and x4 Operation. |
Push Buttons |
N/A Five: Program, Menu Back, Menu Forward (Fault Reset), Increment and Decrement. |
Features |
N/A
Closed Loop, error compensating - Corrects the stopping position on each index for precise accuracy. Self compensating - Control compensates for changes in speed, dynamic load, air pressure, friction in bearings, slides, etc. Simple, straight forward - Minimal programming, no complex velocity profiles to develop. In Position - Output indicates drive has reached position. Optional MIP/PLS -Multiple Indexing Parameter groups. Select between 16 different index distances that are user programmed. Programmable Limit Switch is capable of 4 Programmable Outputs based on position. Complete Package - No need for external power supplies or accessories. Watchdog timer - Control will stop index if not made within the set time frame adjustable from 100 milliseconds to 1 minute. Stall detection - Control will stop the drive when it senses the system comes to an unexpected stop, preventing damage to the clutch, or other components in the system. Easy installation and operation - Simple menu to set-up, with on the fly electronic fine tuning of the start/stop position. Ultra-Quick - Interrupt driven microcontroller, no scan time problems. |
